MuscleGrid 3KW 24V Off-Grid Solar Inverter (3200VA) | Pure Sine Wave | Single MPPT | LiFePO4 Compatible

MuscleGrid 3KW (3200VA) True Off-Grid Heavy Duty Triple MPPT Solar Inverter

24V Pure Sine Wave | Transformerless | WiFi Monitoring | LiFePO4 Compatible

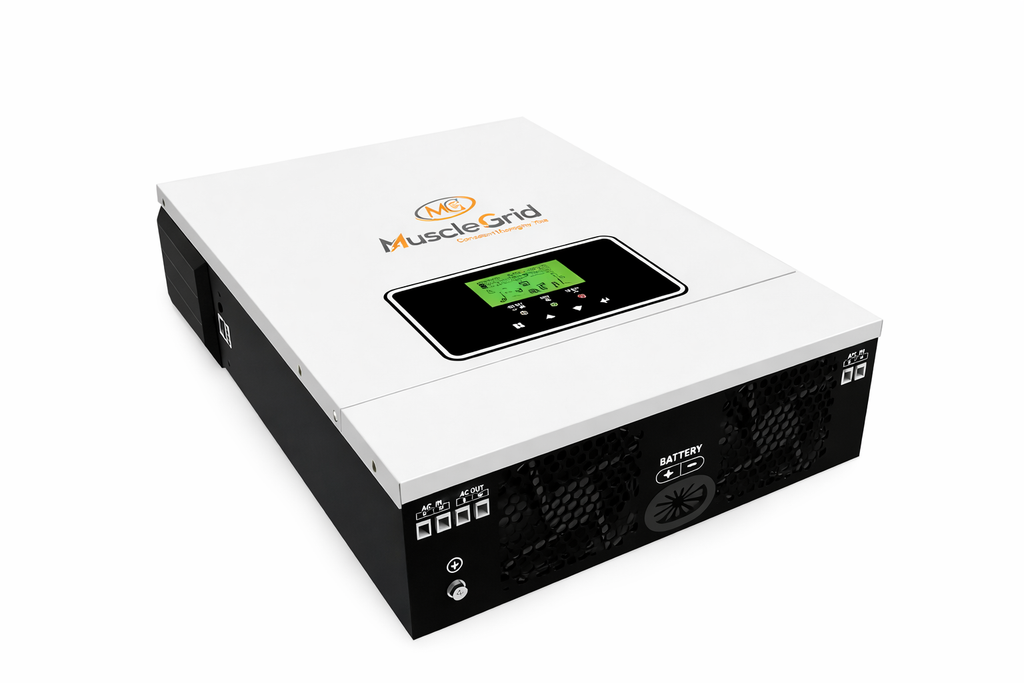

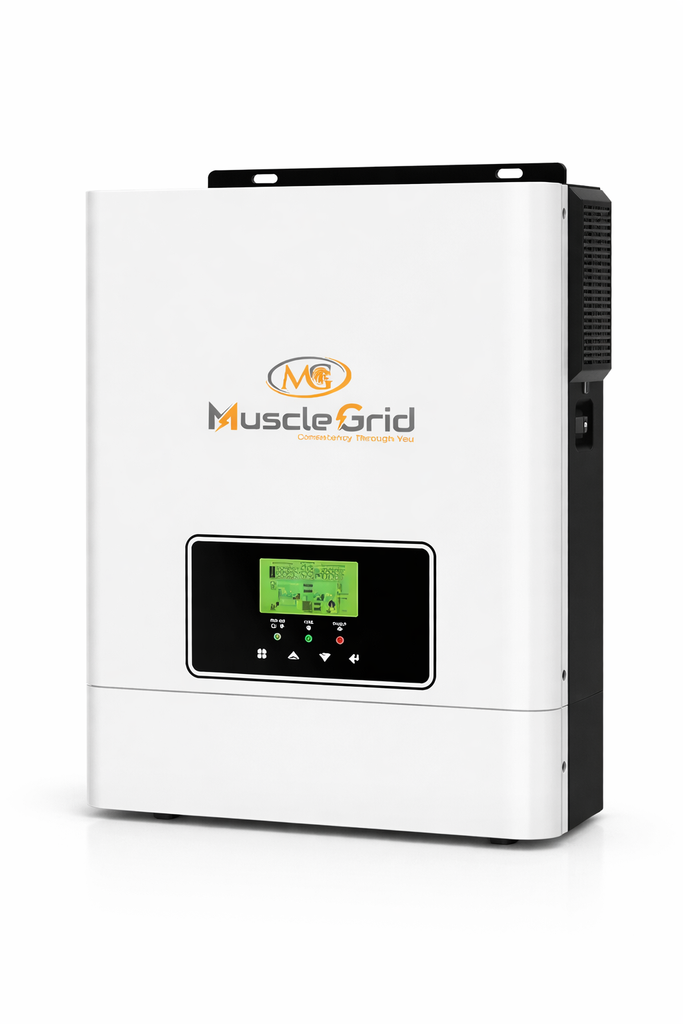

The MuscleGrid 3KW True Off-Grid Solar Inverter is engineered for heavy-duty Indian power conditions. Built with advanced Triple MPPT technology, a high-efficiency 13th Gen processor, and transformerless design, it delivers maximum solar utilization, superior efficiency (98%), and reliable performance for homes, offices, shops, and farm applications.

Designed to support Air Conditioners, Submersible Pumps, and full household loads, this inverter ensures stable output, intelligent load management, and uninterrupted backup power.

Key Highlights

✔ True Off-Grid Technology (No Grid Dependency Required)

Runs independently using solar + battery storage. Ideal for areas with frequent power cuts or unstable supply.

✔ Triple MPPT – Maximum Solar Harvesting

Advanced True MPPT with Triple MPPT tracking ensures higher solar charging efficiency and optimized panel performance even during fluctuating sunlight.

✔ Heavy Duty Transformerless Design

Faster response time
Reduced losses
Lightweight (8 kg)
Higher system efficiency (Up to 98%)

✔ 24V Pure Sine Wave Output

Output Voltage: 240V
Frequency: 50Hz
Changeover Time: 10ms
Surge Handling: 3000VA
Safe for sensitive electronics, refrigerators, ACs, pumps, and industrial loads.

✔ Wide Input Voltage Range

Low Cut: 90V
High Cut: 280V
Built to withstand Indian voltage fluctuations.

Smart Monitoring & Connectivity

📱 WiFi + GPRS Enabled

Monitor system performance via Android & iPhone mobile app with real-time animation and analytics:

Solar generation data
Battery status
Load consumption
System alerts

Stay connected anytime, anywhere.

Advanced Battery Compatibility

Supports all major battery types:

Lithium (LiFePO4)
Tubular
SMF

Battery Configuration:

2 Batteries
12V Each
Charging Current: 0–80 Amps

Ensures flexibility and future-ready lithium upgrade support.

Load Master – Power Factor 1

Designed for heavy Indian appliances:

Air Conditioners
Submersible Pumps
Refrigerators
Washing Machines
Full Home Load

Intelligent load distribution:

Dual Output (Main Load + Secondary Load)
Peak shaving & load management for electricity savings

Backup & Energy Independence

Up to 12 hours backup (depending on battery capacity)
Automatically switches during power cuts
Reduces dependency on grid electricity
Stores excess solar energy for night usage

Safety & Protection Features

High/Low Voltage Protection
Overload Protection (3000W)
Cooling Jet System
CE Certified
Corrosion Resistant Body
Digital Display Panel

Technical Specifications

Rated Power: 3000W (3200VA)
Efficiency: 98%
Operating Temperature: -10°C to 50°C
Dimensions: 35 x 27 x 10 cm
Weight: 8 kg
Mount Type: Wall Mount
Technology: True MPPT, Triple MPPT

In the Box

1 × MuscleGrid 3KW Off-Grid Inverter
1 × WiFi Dongle
1 × User Manual

Warranty

2 Year Manufacturer Warranty
Covered: Manufacturing Defects
Not Covered: Overload burns

Why Choose MuscleGrid?

MuscleGrid inverters are built for Indian conditions — engineered for heavy-duty performance, maximum solar utilization, smart monitoring, and long-term durability. Designed to deliver energy independence, cost savings, and reliable backup power for residential and commercial users.
