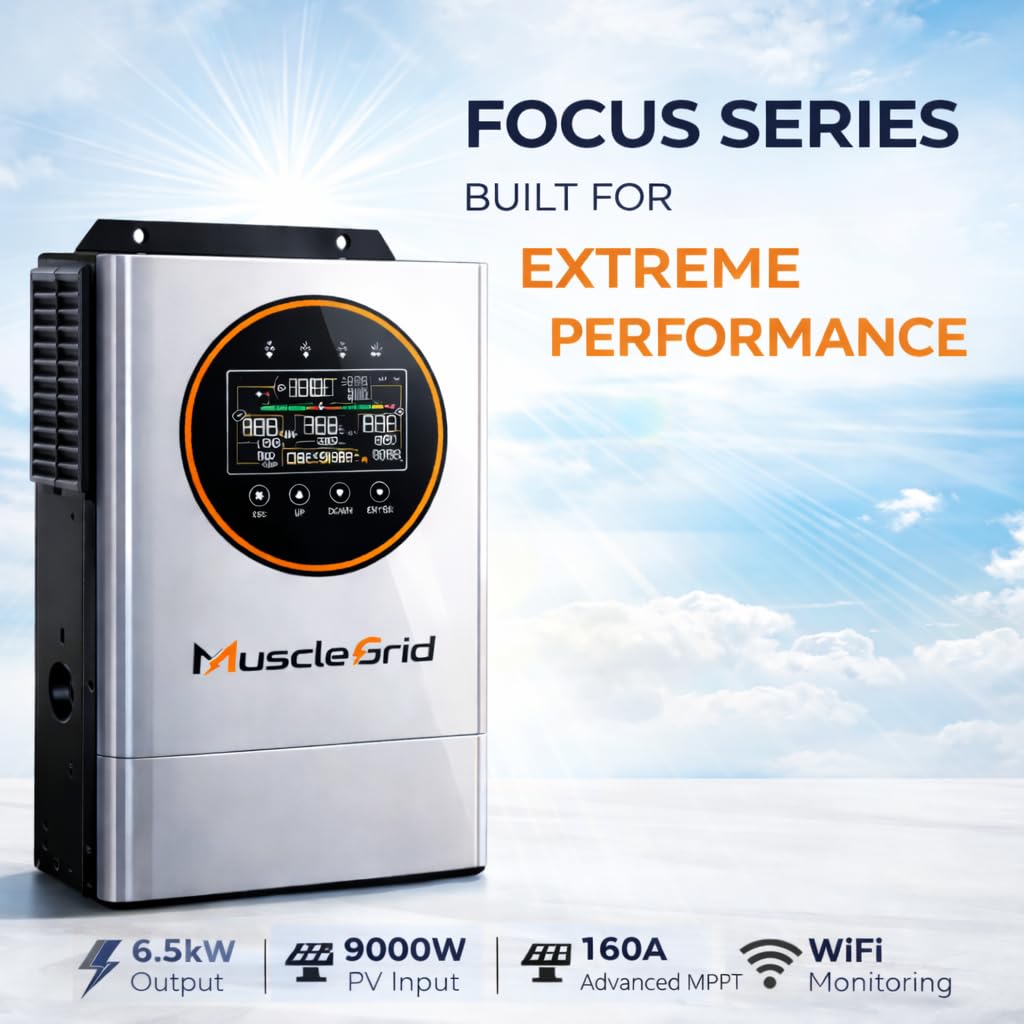

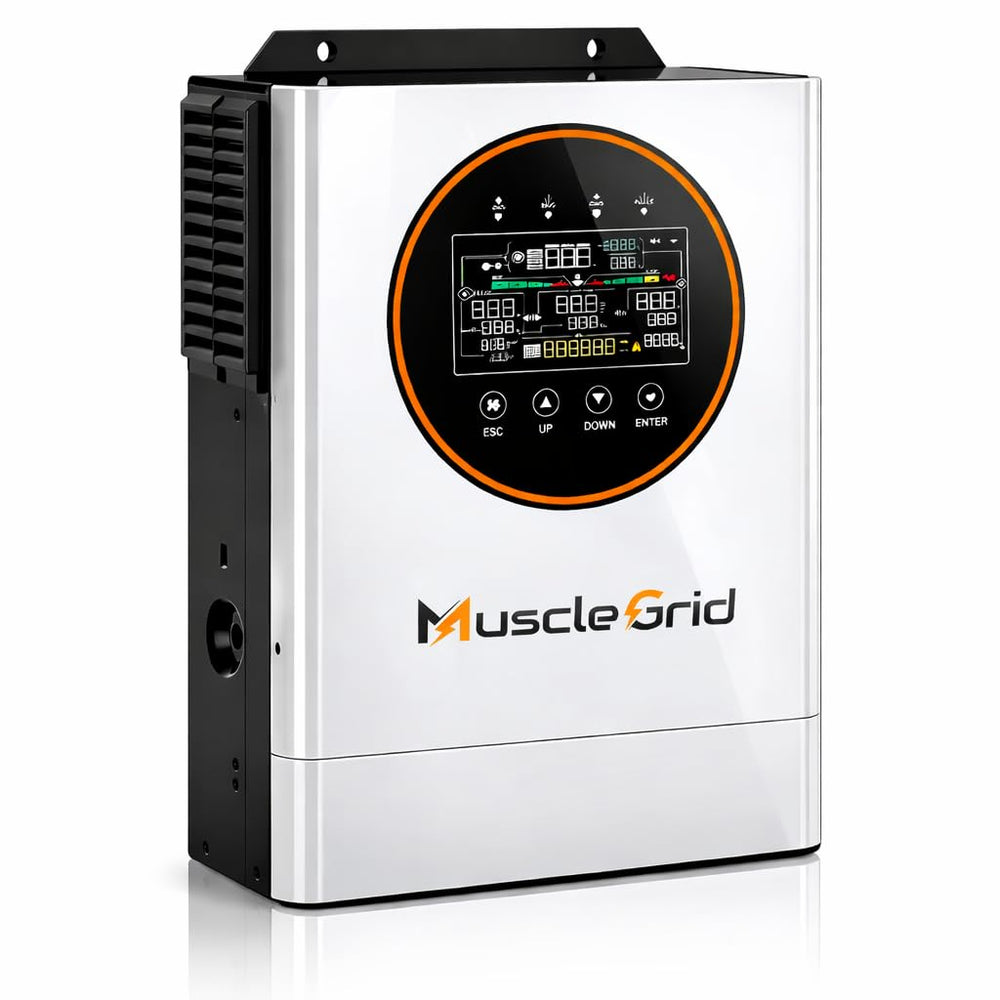

MuscleGrid Focus 6.2 kW Hybrid Solar Inverter (48V) — 9 kW PV
Pure sine wave · MPPT solar charging · runs full home loads
Hassle-free claim
Pan-India · 5–7 days
IS 16242 standard
099990 36254
Description
Choose your warranty
Same inverter either way — choose the cover that fits how you'll use it.
And even if your warranty has expired — in any case — we will still repair your inverter, charging only the part and labour cost.
Pure sine wave output. Genuine MuscleGrid, sold direct: GST invoice, a real warranty honoured at our own service centre, and support on WhatsApp or call — not a marketplace listing.
Why this inverter

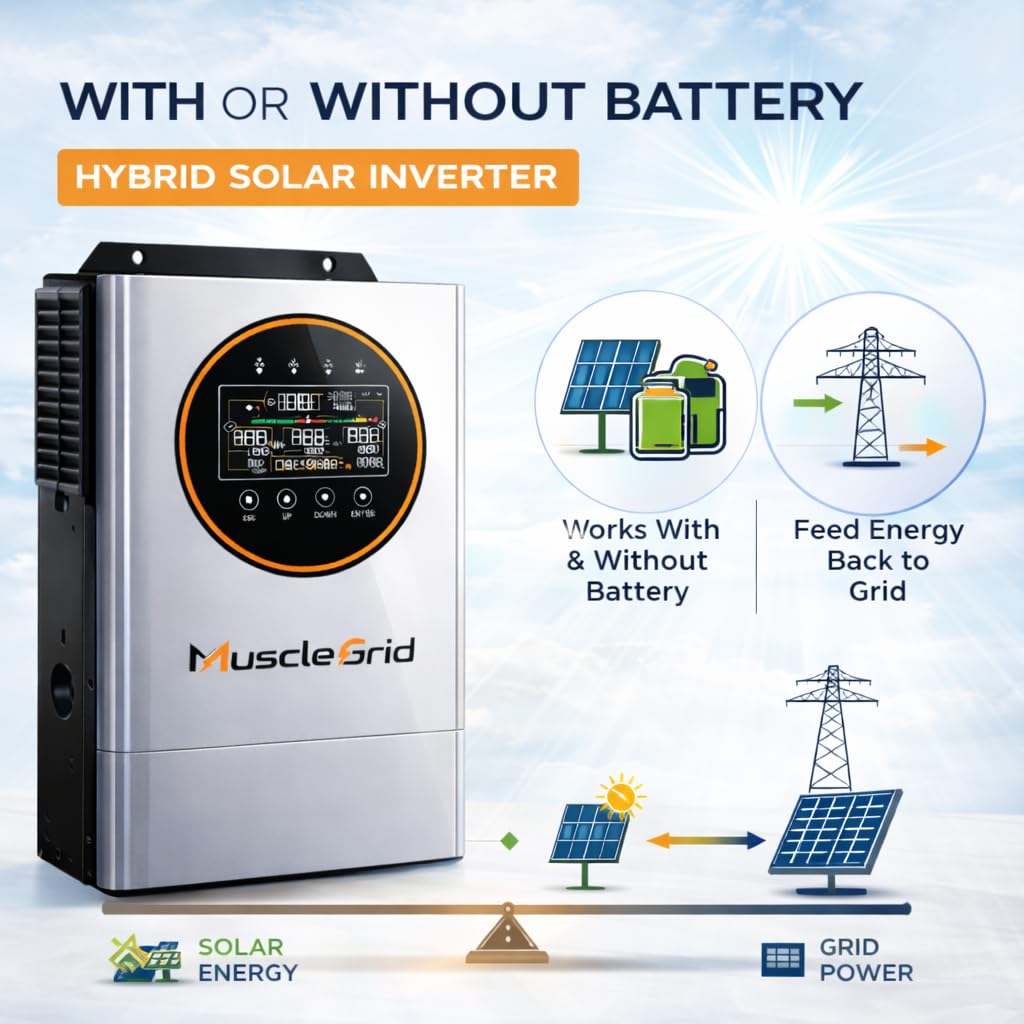

A 6.2 kW 48V hybrid solar inverter sized to carry a full home — two air-conditioners alongside the fridge, pumps, kitchen and lighting, which is where most Indian households land. It runs as a true hybrid — solar first, then battery, then grid — so the panels carry the load whenever the sun allows and the grid is only a fallback. It accepts up to 9 kW of panels through a 120A MPPT tracker.
What is inside
- Pure sine wave output. The same waveform the grid gives you — safe for compressors, motors and sensitive electronics, where a modified wave makes them run hot and hum.
- 120A MPPT charging. Maximum power point tracking pulls the most the panels can give at any light level, rather than the fixed take of a simple PWM controller.

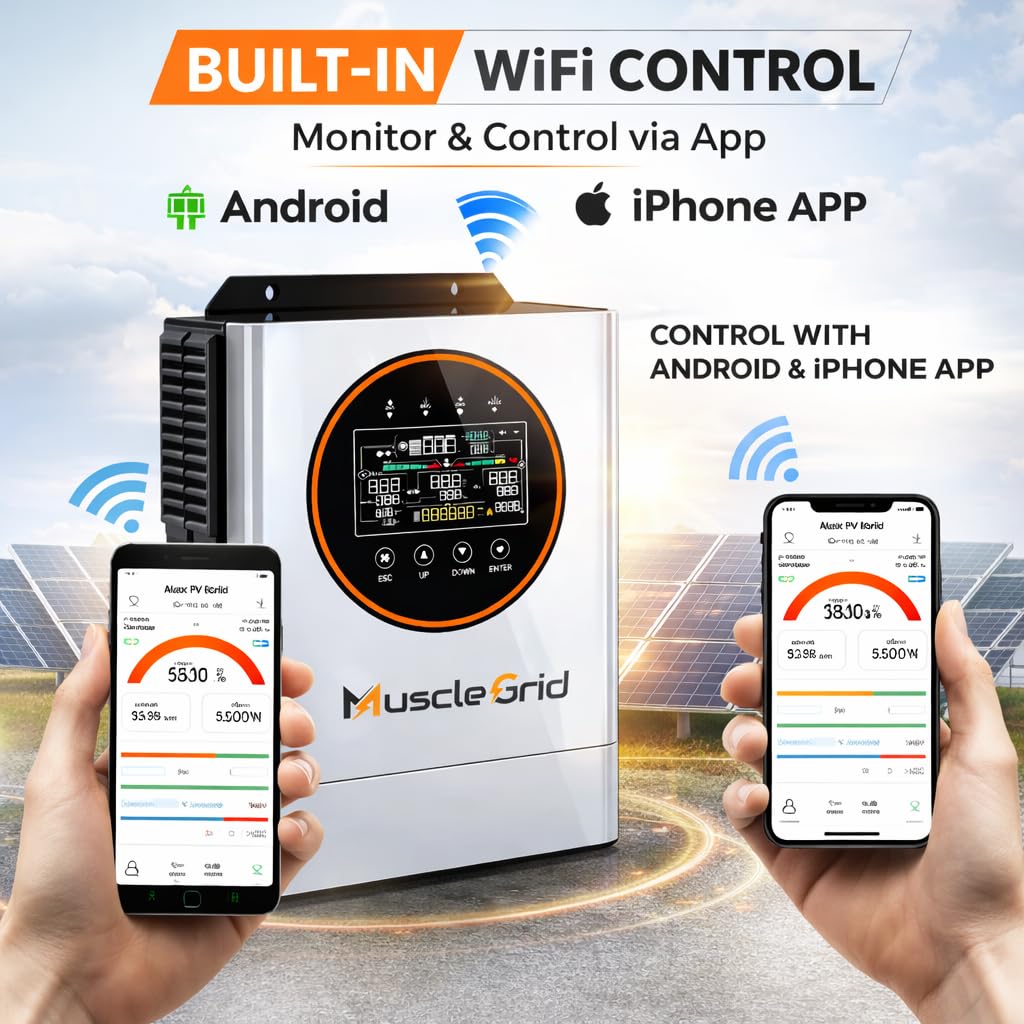

- Wi-Fi app monitoring. Generation, consumption, battery state and faults on your phone, from anywhere — Android and iPhone.
- Backed properly. Direct warranty honoured at our own service centre, with commissioning and sizing help on call — and repairs at parts-and-labour cost even after the warranty ends.
Specifications
| Rated capacity | 6.2 kW |
| System voltage | 48 V |
| Max PV input | 9 kW |
| MPPT | 120 A |
| Output | Pure sine wave |
| Phase | Single phase |
| Operating mode | Hybrid |
| Monitoring | Wi-Fi app (Android / iPhone) |
| Warranty | Standard: 2-year full hardware warranty (+3 months free on registration at newcrm.musclegrid.in) · Extended 5-year for +20% · Research & DIY option: 6-month hardware warranty + phone support at 10% lower price — choose below |
Sizing it right
An inverter is sized by two numbers: the load it must carry at once, and the panels you intend to fit. Undersize either and you will be back within a year. Send us your appliance list on WhatsApp and we will size the system properly — inverter, panels and battery bank together — before you spend.
Why buy direct from MuscleGrid
GST invoice for business input credit, warranty honoured at our own service centre rather than a courier lottery, free shipping pan-India, and guided commissioning on call.
