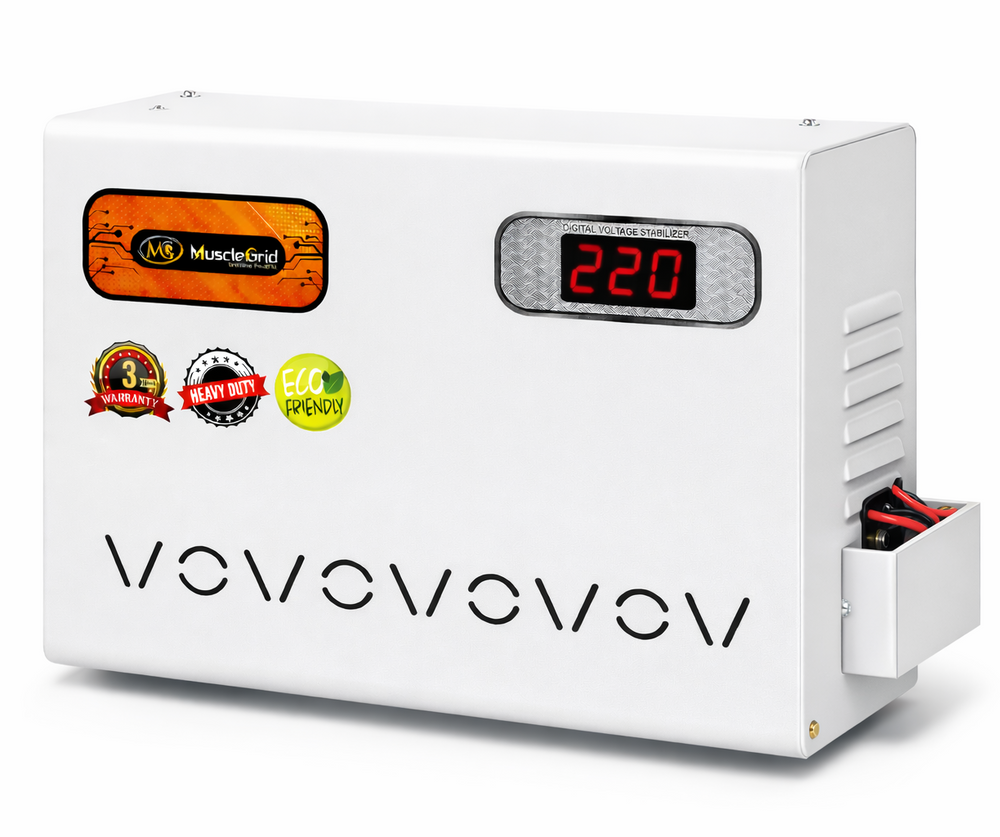

Home/MuscleGrid 5KVA Mainline Voltage Stabilizer (90V–300V) | 20A Load | Digital Automatic | Heavy Duty
Save Rs. 11,389.00MuscleGrid 5KVA Mainline Voltage Stabilizer (90V–300V) | 20A Load | Digital Automatic | Heavy Duty

MuscleGrid 5KVA Mainline Voltage Stabilizer (90V–300V) | 20A Load | Digital Automatic | Heavy Duty

MuscleGrid 5KVA Mainline Voltage Stabilizer (90V–300V) – 20A Heavy Duty Digital Protection Protect your entire home with MuscleGrid’s 5KVA Mainline Voltage Stabilizer, engineered for...

4.8 (205)In stock · ships in 24h SKU · MG5KVAML90
Rs. 7,610.00Rs. 18,999.00−60%Incl. GST
EMI from Rs. 6.34/mo · 12 months · No-cost EMI available
1
5 Years warrantyHassle-free claim
Free shippingPan-India · 5–7 days
BIS CertifiedIS 16242 standard
24×7 Support099990 36254

  • MuscleGrid 5KVA Mainline Voltage Stabilizer (90V–300V) – 20A Heavy Duty Digital Protection

    Protect your entire home with MuscleGrid’s 5KVA Mainline Voltage Stabilizer, engineered for stable output, advanced protection, and long-term durability. Designed for wide voltage fluctuations (90V–300V), this heavy-duty stabilizer ensures safe and consistent power for all your home appliances.

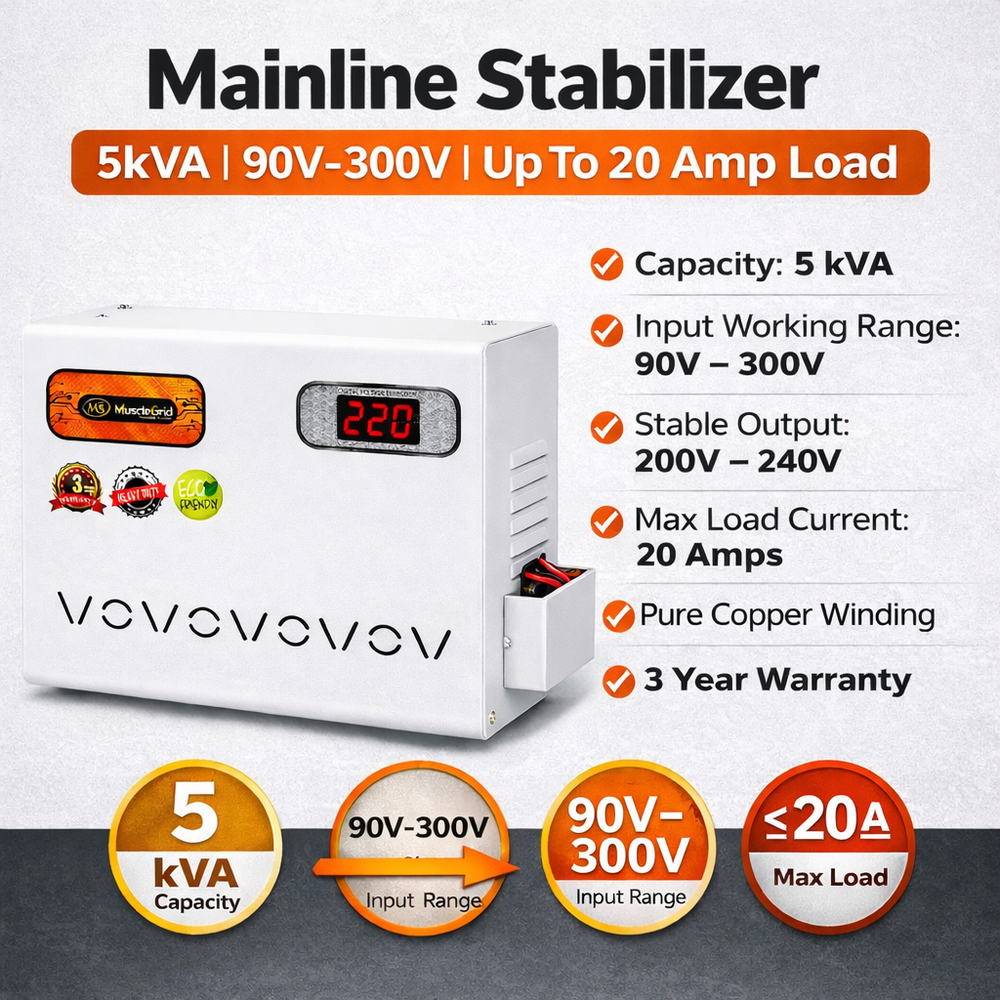

    🔧 Technical Specifications

    • Capacity: 5 KVA

    • Load Handling: Up to 20A

    • Working Range: 90V – 300V

    • Mounting Type: Wall Mounted

    • Dimensions (LxWxH): 43 x 21 x 33 cm

    • Weight: 18 kg

    • Country of Origin: India

    • Warranty: 3 Year Warantee

    ⚡ Advanced Protection System

    Built with complete safety architecture to protect your appliances from:

    • High Voltage Cut-Off

    • Low Voltage Cut-Off

    • Short Circuit Protection

    • Overload Protection

    • Surge Protection

    The stabilizer automatically disconnects supply during extreme voltage fluctuations, protecting ACs, refrigerators, TVs, washing machines, and other home appliances.

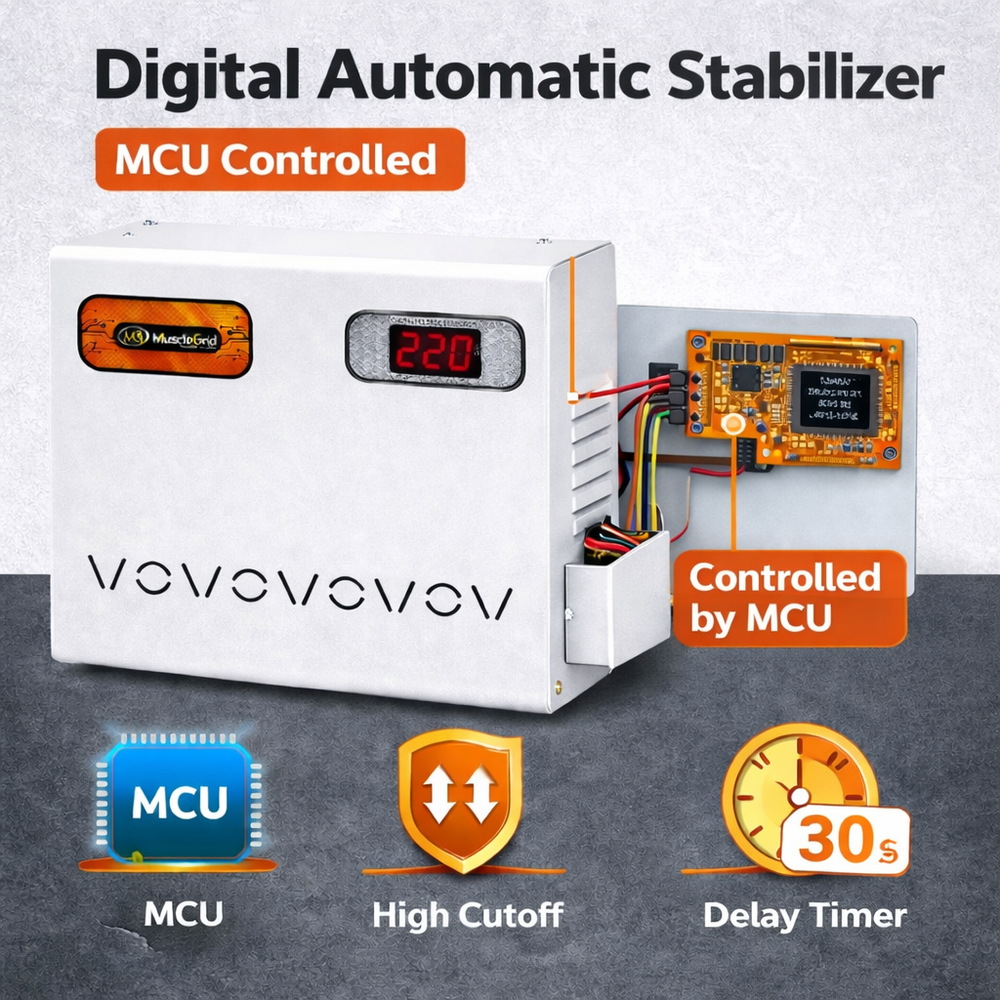

    🧠 Digital Automatic (MCU Controlled)

    • Intelligent digital control system

    • Real-time voltage monitoring

    • Automatic correction for voltage fluctuations

    Multifunction LCD Display Shows:

    • Input Voltage (IP)

    • Output Voltage (OP)

    • High Voltage Indicator (Hi)

    • Low Voltage Indicator (Lo)

    • 5-Second Initial Delay Countdown

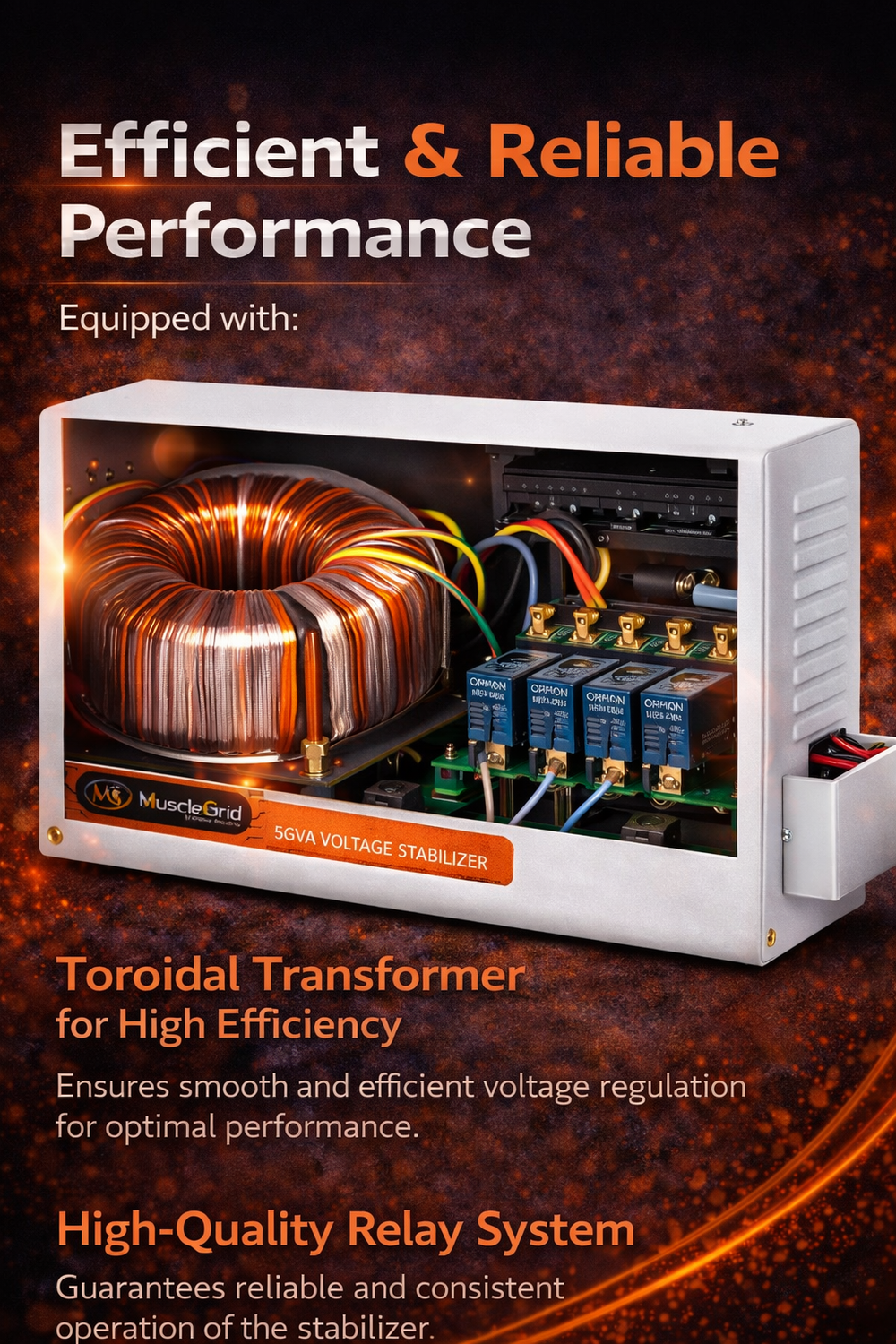

    🔄 Heavy Duty Performance

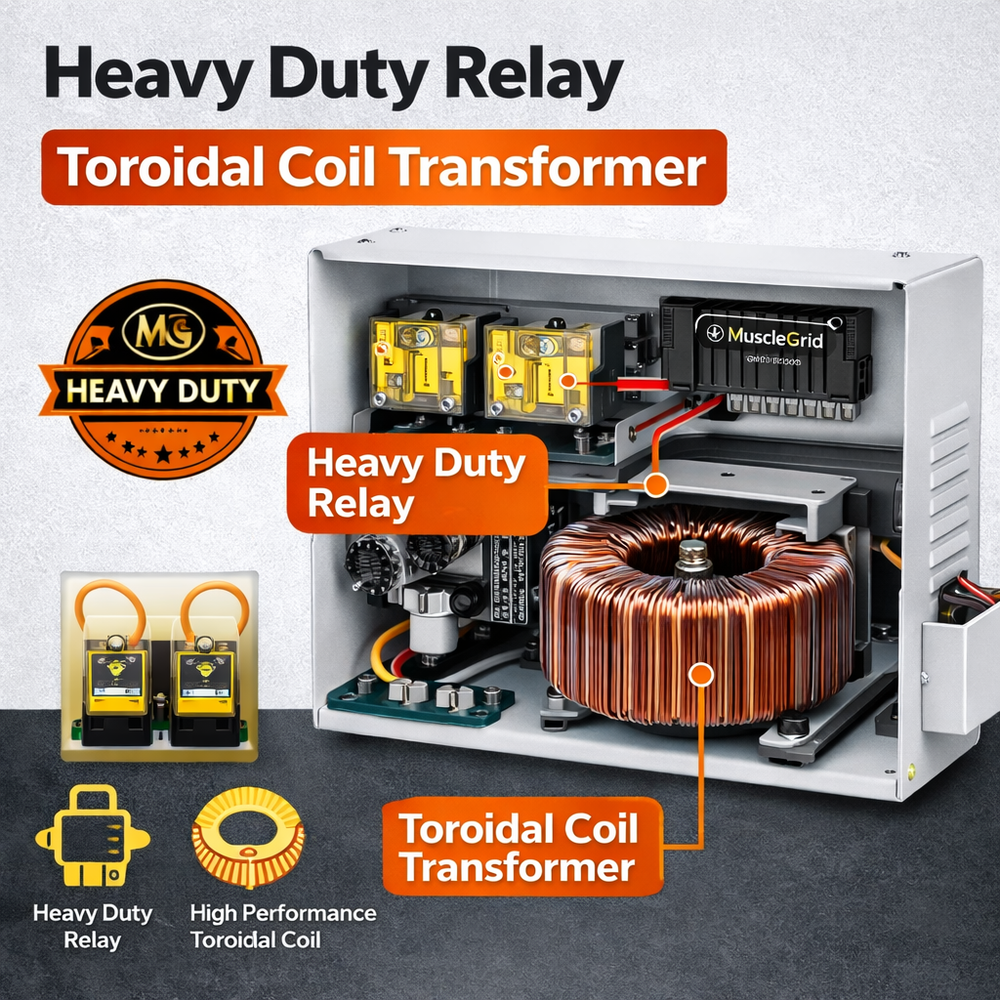

    • High Efficiency Toroidal Transformer

    • Zero Cross Switching Technology

    • Heavy Duty Relay Mechanism

    • High tensile metal cabinet for durability

    Designed for long life, stable output, and lower heat generation.

    🔁 Dual MCB System (Built-In)

    • MCB 1: Stabilizer ON/OFF (Mains Control)

    • MCB 2: Changeover/Bypass Mode

    In case of emergency or service, you can switch to direct grid supply instantly.

    🏠 Easy Installation

    • Wall-mount ergonomic design

    • In-box mounting accessories included

    • Simple 5-wire connection:

      • 2 wires Input

      • 2 wires Output

      • 1 wire Earthing

    Quick installation with clearly marked terminals.

    🛡 3-Year Warantee

    MuscleGrid offers a hassle-free warranty.
    If any issue arises:

    • Pickup from your home

    • Free replacement delivered to you

    • No service center visits required

    Complete peace of mind.
