Accessories
MuscleGrid 8S Active Balancer — up to 5A · LiFePO4 / Li-ion / LTO
Capacitive cell equalizer · up to 8S · up to 5A · plug & play
₹1,545
🛡
DOA-only cover
Replace if dead on arrival · report within 48h
Replace if dead on arrival · report within 48h
🚚
Shipping at actuals
Charged at cost · paid by buyer
Charged at cost · paid by buyer
🔩
Genuine component
Sold as described
Sold as described
📞
24×7 Support
082828 20846
082828 20846
Description
Buy as a component, or add a warranty
Same part either way — choose how you want to buy it. The option you pick is printed on your invoice.

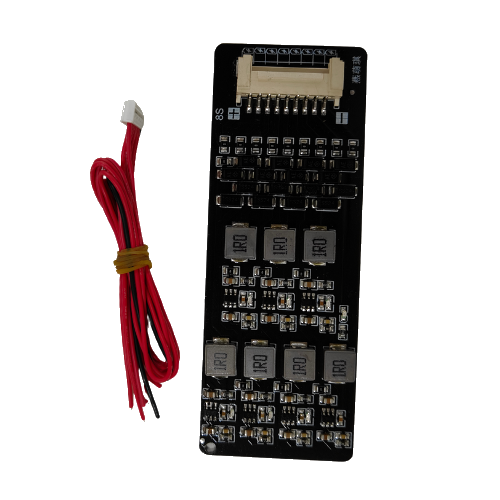

MuscleGrid 8S Active Balancer is a capacitive cell equalizer that transfers energy between cells to keep your lithium pack in balance — detecting voltage differences and redistributing charge automatically with minimal heat. Faster, cooler balancing than a passive BMS, for more usable capacity and longer pack life.
Key features
- Up to 8S — LiFePO4, Li-ion & LTO (cell range 1.8–4.5V)
- Up to 5A active balancing — far faster than passive BMS on big packs
- ±5 mV accuracy · energy-transfer (capacitive) balancing, low heat
- Very low standby draw (<0.1 mA sleep) · plug & play
Ideal for
- 30Ah–300Ah lithium packs
- E-rickshaw & e-bike systems
- Solar / inverter battery banks
- DIY & integration builds
Specifications
| Type | Capacitive active balancer / equalizer |
| Supported cells | up to 8S (series) |
| Cell voltage range | 1.8–4.5 V |
| Balance current | up to 5A (0–5.5A) |
| Voltage accuracy | ±5 mV |
| Chemistry | LiFePO4 / Li-ion / LTO |
| Standby / working | <0.1 mA sleep · ~12 mA active |
| Design | Plug & play module |
| In the box | Balancer board + balance-lead harness |
Accessory / spare part — please read. This is a component sourced from third-party manufacturers and sold under the MuscleGrid label; it is not manufactured by MuscleGrid. It is supplied as a part for DIY, integration, repair and professional assembly — not a finished, certified consumer appliance — and is not BIS-certified by MuscleGrid. The buyer is responsible for correct, safe installation and for any compliance required in their application. Sold with dead-on-arrival (DOA) cover only — if it arrives defective, damaged in transit or is the wrong item, tell us within 48 hours with an unboxing photo/video and we replace or refund it. No change-of-mind returns and no performance warranty beyond DOA. Shipping is charged at actuals. See our Accessories & Spare Parts Policy.
